61 71 004 Adjusting washer jets for windscreen washer system

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Triple nozzle system

Fig 1: Adjusting Washer Jets For Windscreen Washer System

Courtesy of BMW OF NORTH AMERICA, INC.

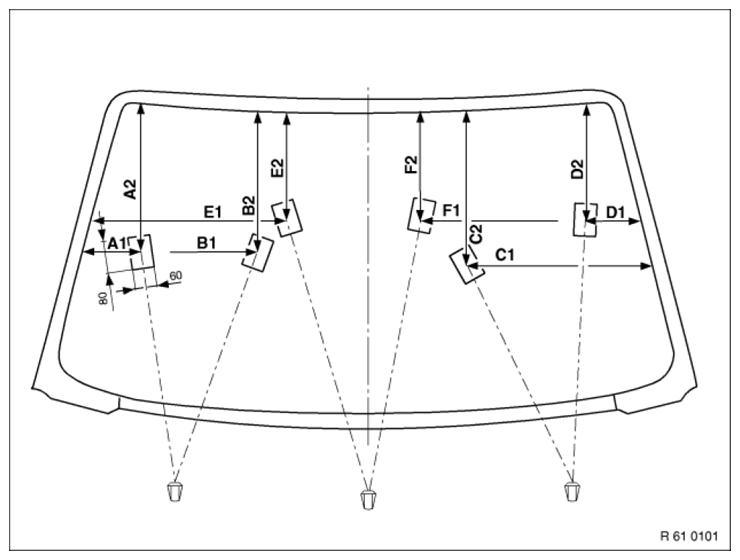

The spray jets should hit the middle of the wiping area.

Adjustment values in mm

A1= 200

A2= 400

B1= 400

B2= 400

C1= 450

C2= 450

D1= 230

D2= 350

E1= 500

E2= 350

F1= 550

F2= 350

NOTE: If necessary, remove adhesive residue from windscreen.
Fill up with washer fluid.

NOTE: Washer jets are preset; in case of customer complaint, the setting can be adjusted as needed.

Changes in the setting must take into account the possible driving situations (high/low speed; with/without washing additive) and must be performed with care.

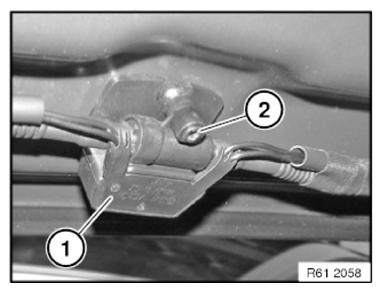

If necessary, adjust left/right or middle washer jet (1) by way of screw (2).
