61 31 382 Replacing coolant level switch (N20, N63, S63, N52, N57)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Partly remove FRONT WHEEL ARCH TRIM REAR PART

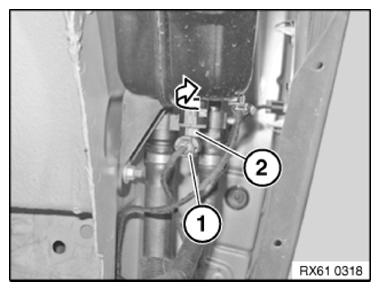

Unfasten plug connection (1) and disconnect.
Turn coolant level switch (2) in direction of arrow and pull out towards bottom.
