61 31 339 Replace the handle cover for the gear selector switch (Sport)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 460

Lever out the display (1) with a suitable tool.

NOTE: Display (1) is glued on.

Installation note:

Remove the protective film from the back of the display before installing.

Make sure display (1) is correctly seated!

Fig 1: Releasing Handle Cover For Gear Selector Switch

G09928880

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 61 31 5AZ .

NOTE: To tighten screws, use special tool 00 9 460 .

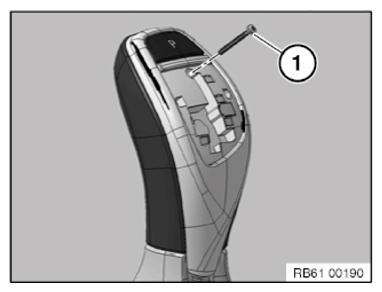

Fig 2: Identifying Handle Cover For Gear Selector Switch And Screw

G09928881

Courtesy of BMW OF NORTH AMERICA, INC.

Zinc plated top shell design:

Remove top shell (1).

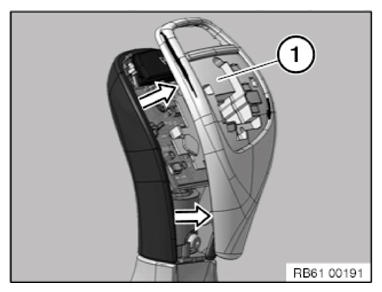

Fig 3: Removing Zinc Plated Top Shell

G09928882

Courtesy of BMW OF NORTH AMERICA, INC.

Ceramic top shell design:

Remove top shell (1).

NOTE: Hold-down device (2) is seated loosely in the top shell (1).

Installation note:

Make sure hold-down device (2) is correctly seated in upper shell (1)!

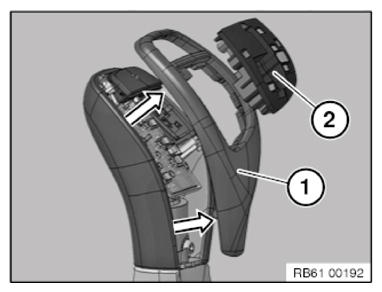

Fig 4: Removing Ceramic Top Shell

G09928883

Courtesy of BMW OF NORTH AMERICA, INC.
