61 31 203 Replacing operating unit for seat adjustment (Memory seat)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove OUTER COVER on front seat

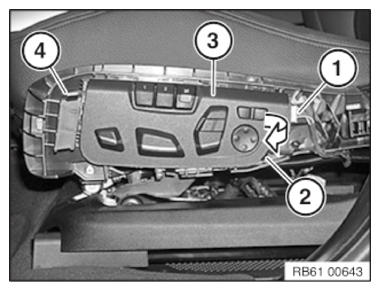

Unfasten plug connection (1) and disconnect.
Unfasten catch (2) and switch cluster (3) out of holder (4) in direction of arrow.
Installation note:
Latch mechanism (2) must not be damaged or missing.
Make sure switch cluster (3) is seated correctly in holder (4).
