61 31 122 Removing and installing/replacing tow hitch switch
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove RIGHT LUGGAGE COMPARTMENT WHEEL ARCH PANEL
- Partially remove luggage compartment wheel arch panel on right . See 51 47 161 REMOVING AND INSTALLING/REPLACING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .

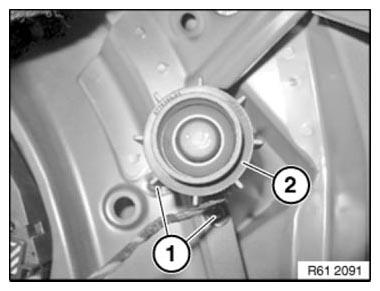

Release screws (1).
Disconnect plug connection underneath and remove tow hitch switch (2).
