61 31 091 Removing and installing/replacing switch for left or right seat-heating (rear)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRESH AIR GRILLE IN REAR CABIN

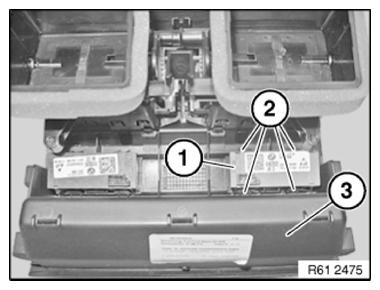

Unlock seat-heating switch (1) at points (2) and remove from cover (3) in upward direction.

Fig 1: Identifying Seat-Heating Switch And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

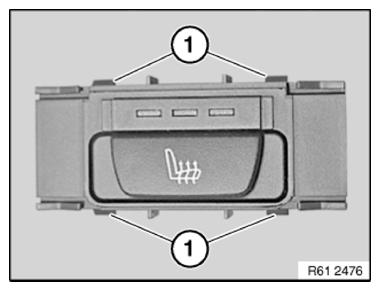

Retaining lugs (1) must not be damaged.

Fig 2: Identifying Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
