61 36 600 Removing and installing/replacing relay for deactivating electric fan
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:

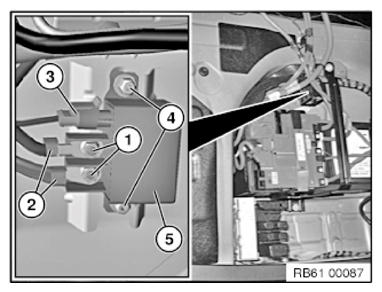

Release nuts (1) and remove lines (2) from relay (5).
Tightening torque 61 36 1AZ .
Unfasten plug connection (3) and disconnect.
Release screws (4) and remove relay (5).
Installation note:
Risk of short circuits!
Make sure lines (2) are correctly seated.
Make sure relay (5) is correctly seated.
