71 60 700 Removing and installing/replacing trailer tow hitch control unit

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic discharge (ESD PROTECTION) .

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT STORAGE COMPARTMENT

Unscrew nuts (1).

Pull trailer tow hitch control unit (2) somewhat forwards.

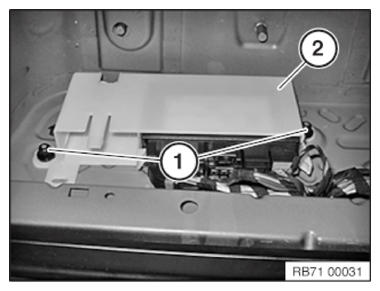

Fig 1: Identifying Trailer Tow Hitch Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

Unlock latch mechanism (2) and remove trailer tow hitch control unit (3) from bracket (4).

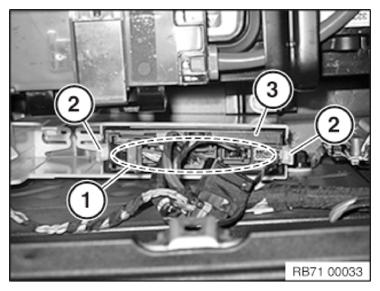

Fig 2: Identifying Latch Mechanism And Trailer Tow Hitch Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.
