61 35 965 Removing and installing/replacing storage shelf aerial for Comfort Access

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM PANEL FOR STORAGE SHELF .

NOTE: Similar to graphic.

Disconnect plug connection (1).

Release screw (2) and remove storage shelf aerial for Comfort Access (3).

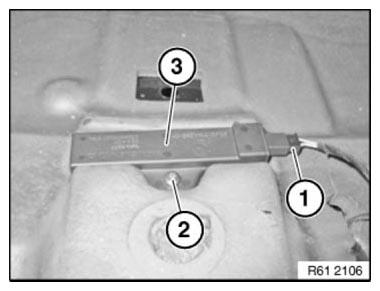

Fig 1: Identifying Storage Shelf Aerial For Comfort Access And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
