61 35 958 Removing and installing/replacing interior aerial for comfort access system on left or right (luggage compartment, side)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove LUGGAGE COMPARTMENT FLOOR TRIM PANEL

Disconnect plug connection (1).

Unclip interior aerial for Comfort Access System (2) and remove.

Installation note:

Make sure interior aerial for Comfort Access System (2) is correctly seated in designated holder.

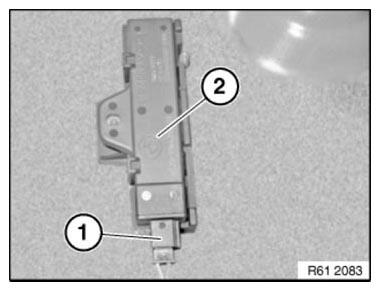

Fig 1: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
