61 35 245 Removing and installing (replacing) Smart Opener bottom sensor line (noncontact rear lid opening)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic discharge (ESD PROTECTION) .

Necessary preliminary tasks:

Remove bottom center COVER

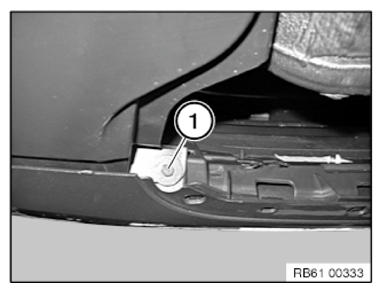

Release screw (1).

Fig 1: Identifying Bottom Center Cover And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown with bumper panel removed for purposes of clarity.

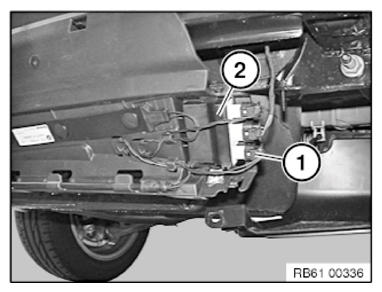

Unlock associated plug connection (1) on control unit (2) and disconnect.

Fig 2: Identifying Associated Plug Connection On Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage, do not kink sensor line!

NOTE: Shown with bumper panel removed for purposes of clarity.

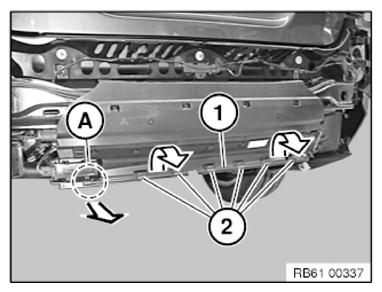

Dismantling sequence:

Detach sensor line (1) in area (A) to the rear
Detach sensor line (1) from holder (2) to the top
Remove sensor line (1)

Fig 3: Detaching Sensor Line From Holder To Top
Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure plug connection and sensor line (1) are correctly fitted.

Make sure connecting line is correctly laid.

Brackets must not be damaged.
