61 35 243 Removing and installing (replacing) Smart Opener top sensor line (non-contact rear lid opening)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic discharge (ESD PROTECTION) .

Necessary preliminary tasks:

Remove REAR BUMPER TRIM

IMPORTANT: Risk of damage, do not kink sensor line!

Unlock associated plug connection (1) and disconnect.

Release sensor line (2) at clips (3) and remove.

Installation note:

Make sure plug connection (1) and sensor line (2) are correctly seated.

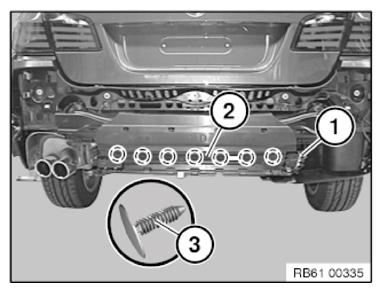

Fig 1: Identifying Sensor Line And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure connecting line is correctly laid.

Clips (3) must not be missing or damaged.
