61 35 240 Removing and installing (replacing) Smart Opener control unit (non-contact rear lid opening)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic discharge (ESD PROTECTION) .

Necessary preliminary tasks:

Remove bottom center COVER

Release screw (1).

Fig 1: Identifying Bottom Center Cover And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown with bumper panel removed for purposes of clarity.

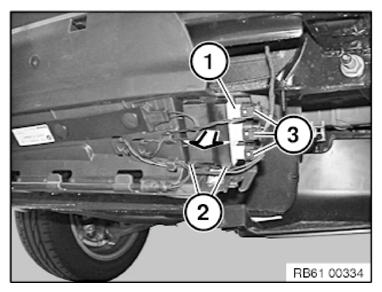

Unlock retaining lug (2) and pull out control unit (1) in direction of arrow.

Unlock plug connections (3) and disconnect.

Installation note:

Make sure plug connections and control unit (1) are seated correctly.

Make sure connecting lines are correctly routed.

Fig 2: Pulling Control Unit And Retaining Lug

Courtesy of BMW OF NORTH AMERICA, INC.
