61 35 196 Removing and installing (replacing) control unit for automatic rear lid actuation

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary tasks:

DISCONNECT BATTERY NEGATIVE LEAD
Partially remove WHEEL ARCH PANEL on right

Remove equipment holder (1) in direction of arrow.

Installation:

Make sure equipment holder (1) is correctly seated.

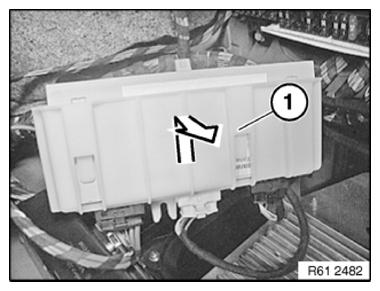

Fig 1: Removing Equipment Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

Release equipment holder (2) and pull out control unit (3).

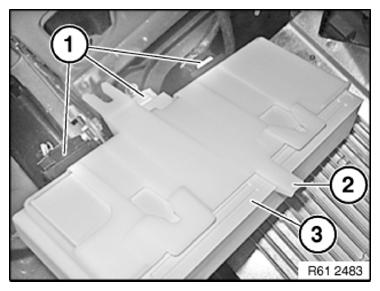

Fig 2: Identifying Equipment Holder And Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .
