61 12 062 Replacing wiring harness for front bumper
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on HANDLING WIRING HARNESSES
and cables.
Necessary preliminary tasks:
- Remove FRONT BUMPER TRIM .

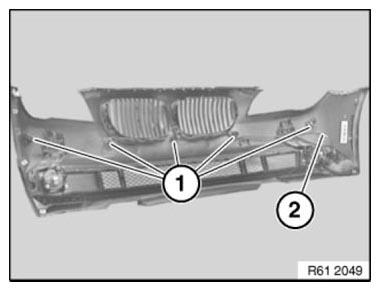

Disconnect plug connections (1) on five ultrasonic transducers.
Unclip wiring harness (2) from bumper trim.
Remove wiring harness (2).
Remove PDC. Refer to 66 20 515 REMOVING AND INSTALLING/REPLACING A FRONT LEFT ULTRASONIC TRANSDUCER (PDC) , 66 20 516 REMOVING AND INSTALLING/REPLACING A FRONT RIGHT ULTRASONIC SENSOR (PDC) , 66 20 517 REMOVING AND INSTALLING/REPLACING A FRONT CENTER LEFT ULTRASONIC SENSOR (PDC) or 66 20 519 REMOVING AND INSTALLING/REPLACING A FRONT, CENTER RIGHT ULTRASONIC TRANSDUCER (PDC) .
Installation:
Make sure wiring harness (2) is laid correctly.
