61 12 002 Replacing positive battery cable (from battery to luggage compartment cable connector)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Observe SAFETY INFORMATIONS
for handling vehicle battery.
Necessary preliminary tasks:
- Disconnect NEGATIVE BATTERY CABLE
- Remove front spare wheel well trim panel only with F07
- Remove luggage compartment floor trim panel only with F11, F12

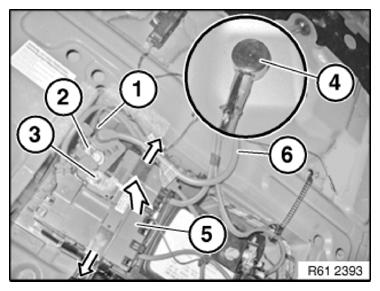

If necessary, unlock and disconnect plug connection (1) of safety battery terminal lead.
IMPORTANT:
Do not under any circumstances pull/lever off safety battery terminal (1) by force.
Loosen nut (2).
Tightening torque 61 21 1AZ .
Unscrew nut (3).
Tightening torque 61 21 2AZ .
Open cap (4) and release nut underneath.
Tightening torque 61 21 4AZ .
Unclip locking brackets from power distribution box (5) in direction of arrow.
Raise power distribution box (5) in direction of arrow and remove positive battery cable (6).
