51 12 223 Removing and installing/replacing cover for rear bottom center bumper panel

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1) and expanding rivets (2).

Tightening torque 51 12 10AZ .

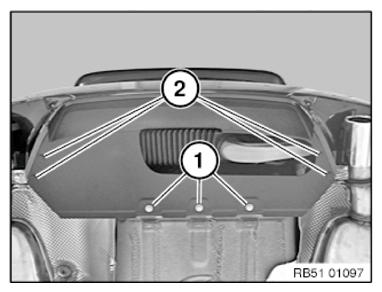

Fig 1: Identifying Bumper Panel Rivets And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover (1) from latch mechanisms (2) to the front.

Installation note:

Latch mechanisms (2) must not be damaged.

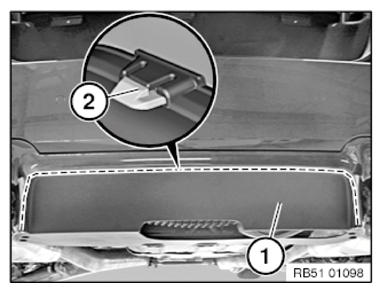

Fig 2: Identifying Latch Mechanisms And Cover

Courtesy of BMW OF NORTH AMERICA, INC.
