51 12 080 Removing and installing/replacing rear cover on bumper panel (M Aerodynamic package/M5)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR BUMPER TRIM

Release latch mechanism (1) along line.

Remove cover (2).

Installation note:

Latch mechanisms on cover (2) must not be damaged or missing.

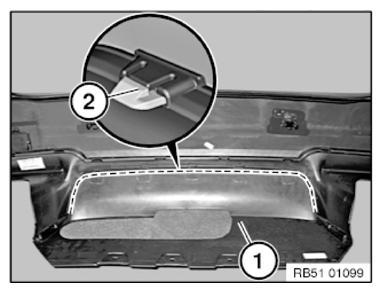

Fig 1: Identifying Bumper Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

For replacement only M5:

Release cover (1) at latch mechanisms (2).

Modify cover (1).

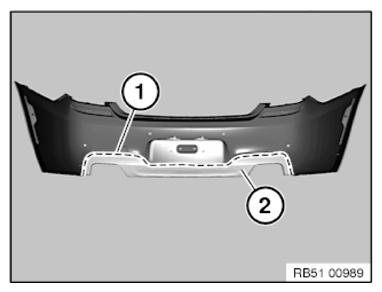

Fig 2: Identifying Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.
