51 16 405 Removing and installing/replacing roller sunblind on side window of left or right rear door
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).
Necessary preliminary tasks:
- Remove REAR DOOR TRIM PANEL

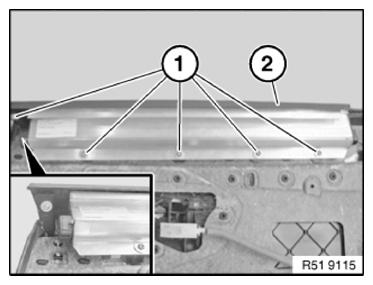

Release screws (1).
Tightening torque 51 16 18AZ .
Remove roller sun blind module (2).
