51 16 041 Removing and installing/replacing protective cap on left or right exterior mirror (from 07/13)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove MIRROR GLASS

NOTE: Protective cap is secured without play to the retaining ring by means of multitooth catches (1).

Secure protective cap on exterior mirror against falling off.

Raise catches (2) slightly and detach protective cap towards front from multitooth catch (1).

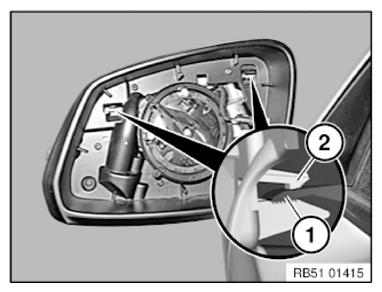

Fig 1: Identifying Exterior Mirror Catch

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Catches and guides must not be missing or damaged.

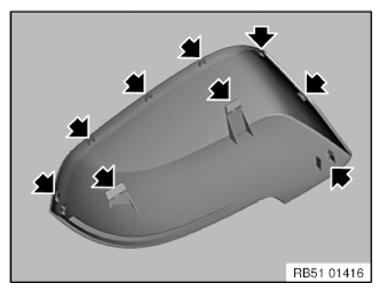

Fig 2: Identifying Exterior Mirror Catches And Guides

Courtesy of BMW OF NORTH AMERICA, INC.
