51 45 370 Removing and installing (replacing) left decorative strip on dashboard

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

NOTE: Graphic shows F01.

Carefully remove decorative strip (1) 00 9 317 with special tool and disconnect plug connection behind.

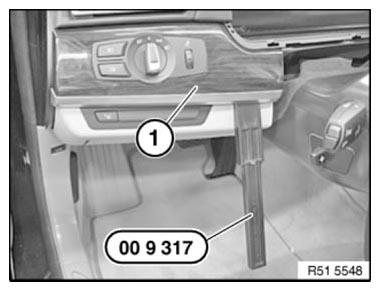

Fig 1: Removing Decorative Strip With Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure clamps (1) are correctly seated on decorative strip (2).

Replace defective clamps.

Replacement

Modify LIGHT OPERATING UNIT .

Modify clamps (1).

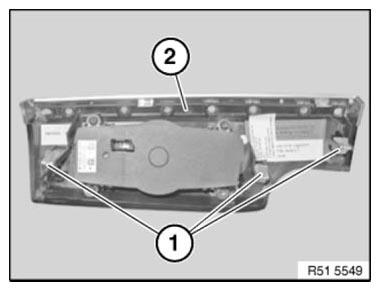

Fig 2: Identifying Dashboard Decorative Strip And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.
