51 23 131 Adjusting left or right striker on engine compartment lid

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Adjusting striker is described in:

ADJUSTING ENGINE COMPARTMENT LID

Undo screws (3) and remove striker (2).

Tightening torque 51 23 1AZ .

Disconnect Bowden cable (1).

Installation note:

ADJUST ENGINE COMPARTMENT LID

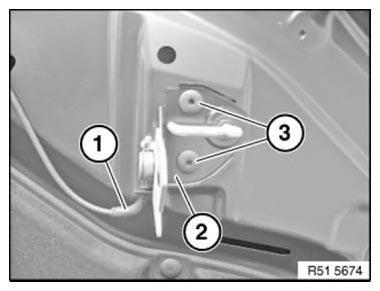

Fig 1: Identifying Door Striker, Bowden Cable And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
