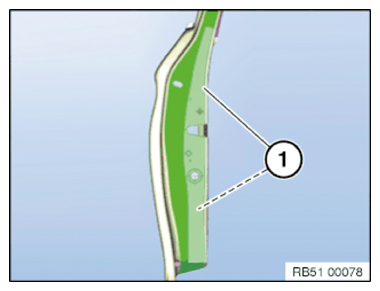

51 71... Sticking templates for door seal to inner door panel (door seal removed)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
The position of the seal in the area of the door lock is set by means of templates (in the form of adhesive film).
Matching templates are supplied with new seals.
Procedure applies universally but is illustrated for front door .
Necessary preliminary tasks:

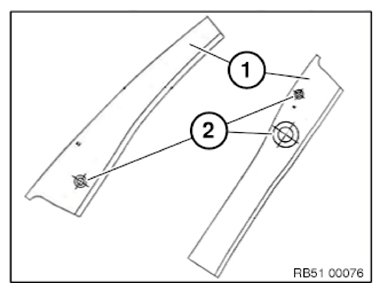

- Separate pre-perforated cut-outs (2) for door lock fixings, reflectors, etc. from templates (1) if necessary.
- Clean surfaces where templates are to be stuck on inner door panel with adhesive remover (sourcing reference: BMW Parts Department).
Apply templates to inner door panel:

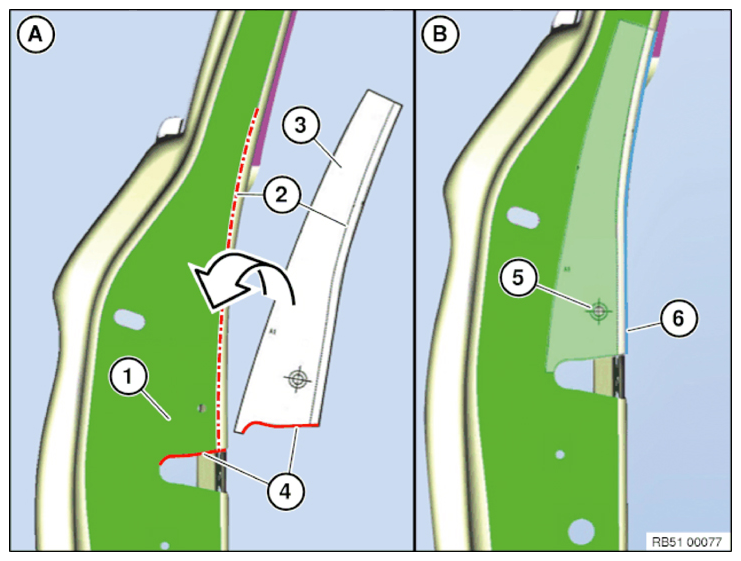

Graphic (A): before sticking down template (3) align with inner door panel (1)
- Template contact edge and door lock cut-out edge match identically (4)
- Marking on template and start of inner door panel curvature match identically (2)
Graphic (B): checking position of template relative to inner door panel after sticking on
- Template cutting edge and projected inner door panel contact edge are flush (6)
- Template markings/cut-outs (5) are flush with relevant hole, screw fixing, reflector, etc.
Repeat preceding operation for other templates (1) if necessary.
