51 71 345 Removing and installing/replacing left (rear) suspension cross-brace

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Driving without the suspension cross-brace is not permitted! (risk of damage to the body).

Release expanding rivet (1) and remove cover (2).

Installation note:

Replace damaged expanding rivet.

Holders (3) must snap into place in suspension cross-brace when cover (2) is installed.

Fig 1: Identifying Cowl Panel Cover, Holder And Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 51 61 1AZ .

Remove suspension cross-brace (2).

Installation note:

Make sure suspension cross-brace (2) is in correct installation position.

Replace screws (1).

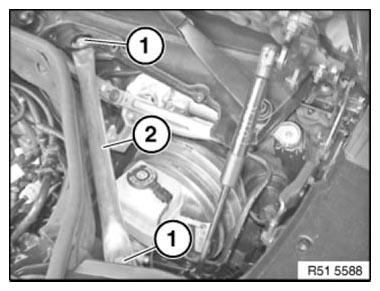

Fig 2: Identifying Suspension Cross-Brace With Screws (51 71 345)

Courtesy of BMW OF NORTH AMERICA, INC.
