51 48... Replace the heat insulation for the tunnel

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For F10 M5 and F12/F13 M6, it must be retrofitted when replacing the heat insulation.

Cut the marked area of the heat insulation (1) off along the broken line (2).

Dimension "A" approx. 80 mm.

Flatten down the cutting edges (3) slightly to prevent sharp outer edges.

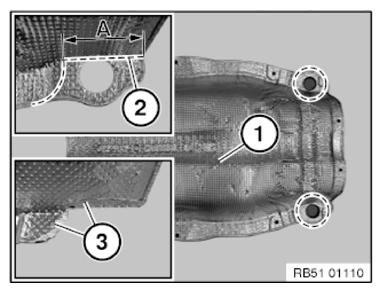

Fig 1: Identifying Heat Insulation And Line

Courtesy of BMW OF NORTH AMERICA, INC.
