51 21 280 Removing and installing/replacing door stop on left or right front door

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Close door windows
Remove sound insulation in front area only . See 51 48 060 REMOVING AND INSTALLING/REPLACING SOUND INSULATION IN LEFT OR RIGHT FRONT DOOR or 51 48 070 REMOVING AND INSTALLING/REPLACING SOUND INSULATION ON LEFT OR RIGHT REAR DOOR

NOTE: Operations are shown for F10 as an example.

After disengaging door stop, use suitable means of preventing door from opening past its maximum permissible opening angle (risk of damaging paintwork or bodywork).

NOTE: Secure front door against falling closed.

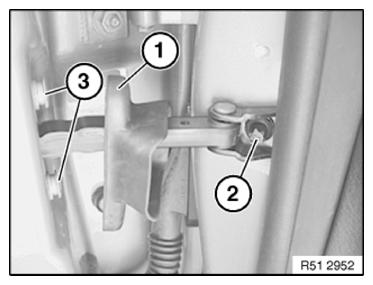

Lever out seal (1).

Release screw (2).

Tightening torque 51 21 3AZ .

Release screws (3).

Tightening torque 51 21 5AZ .

Installation note:

Fig 1: Identifying Front Door Seal And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Seal (1) must not be damaged.

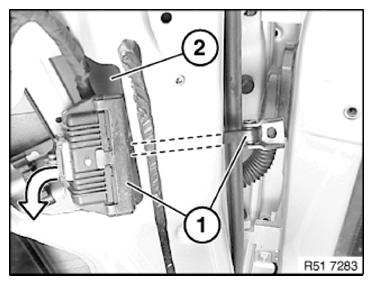

Remove door stop (1) via aperture (2).

Fig 2: Removing Door Stop

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

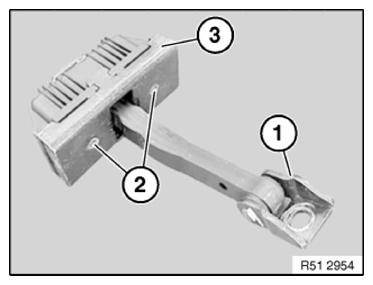

Following parts of door retainer (3) must not be damaged:

Hinge
Thread

Fig 3: Identifying Door Retainer, Hinge And Thread
Courtesy of BMW OF NORTH AMERICA, INC.
