51 11 770 Removing and installing/replacing front left or right deformation element for bumper

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove SIDE ENGINE COMPARTMENT LID GASKET MOUNTING in working area
REMOVE support for front bumper panel
Release HIGH-PRESSURE NOZZLE OF HEADLIGHT CLEANING SYSTEM

Release screw (1) on V-support (2).

Tightening torque 51 61 6AZ .

Release screws (3).

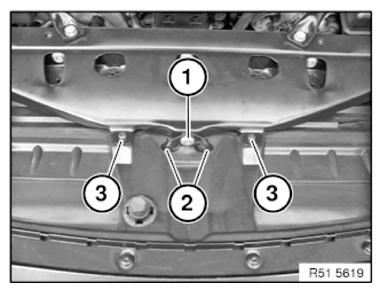

Fig 1: Identifying V-Support Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip hose pipe (2) for headlight cleaning system at marked points and set down safely.

Release screws (1) on V-support (3).

Tightening torque 51 11 7AZ .

Feed out cross-struts (3).

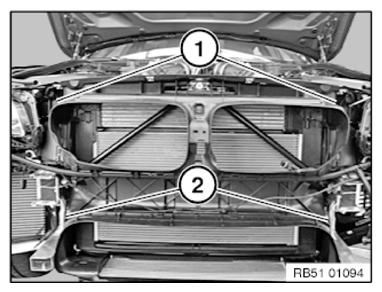

Fig 2: Locating Cross-Struts, Hose Pipe & Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip air duct (1)

Installation note:

Make sure all retaining lugs are correctly latched on air duct (1).

Retaining lugs on air duct (1) must not be missing or damaged.

Fig 3: Removing Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip wiring harness mounting (1).

Fig 4: Unclipping Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

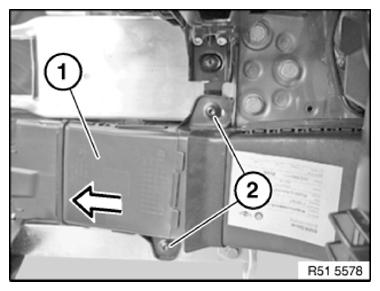

Release screws (2) on brake air duct (1).

Remove brake air duct (1) in direction of arrow.

Fig 5: Removing Brake Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For height adjustment, mark position of deformation element (4).

Unfasten plug connection (3) and disconnect.

Release bolts (1) on engine support (2).

Tightening torque 51 11 3AZ .

Installation note:

Height adjustment, refer to 41 00... BODY GAP DIMENSIONS .

Fig 6: Identifying Engine Support Bolts And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on cross-member (2).

Tightening torque 51 11 2AZ .

Fig 7: Identifying Cross-Member Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and (2) and disconnect.

Fig 8: Identifying Bumper Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (1) on headlights (4) and disconnect.

Disengage Bowden cable (2) from engine compartment lid catch (3).

Release screws (5).

Tightening torque 51 23 2AZ .

Installation note:

Bowden cable (2) must be correctly engaged in engine compartment lid mounts.

Fig 9: Identifying Bumper Plug Connection, Headlights, Bowden Cable And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (2).

Feed out deformation element complete with headlights (2) and lock support in direction of arrow and set down safely.

Fig 10: Removing Headlights

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove deformation element (2) from lock support (3).

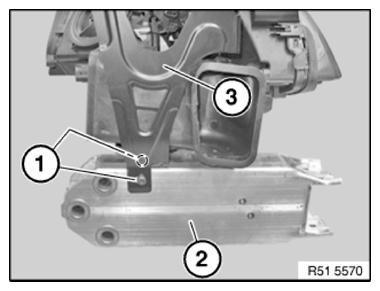

Fig 11: Identifying Lock Support, Element And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:

Remove SIDE ENGINE COMPARTMENT LID GASKET MOUNTING in working area
REMOVE support for front bumper panel
Release HIGH-PRESSURE NOZZLE OF HEADLIGHT CLEANING SYSTEM

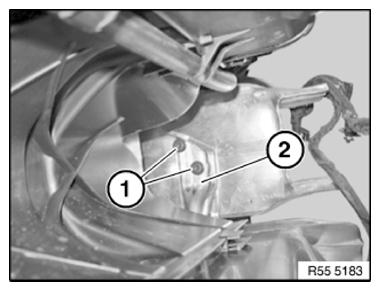

Release screw (1) on V-support (2).

Tightening torque 51 61 6AZ .

Release screws (3).

Fig 1: Identifying V-Support Screw

Courtesy of BMW OF NORTH AMERICA, INC.

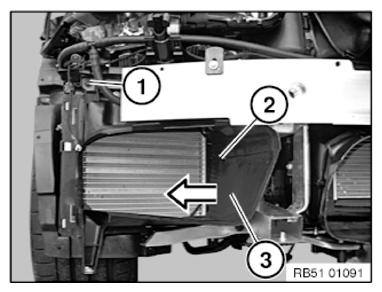

Release screws (1).

If necessary, pull out outside temperature sensor (2).

Feed out air duct (3) in direction of arrow.

Fig 2: Pulling Outside Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

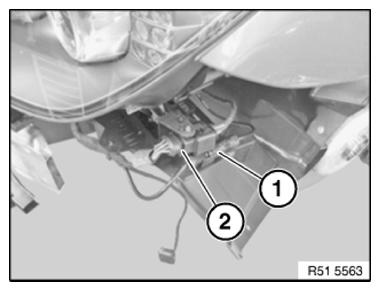

Release screw in area (A) on rear side of auxiliary radiator (1).

Detach auxiliary radiator (1) from holder (2).

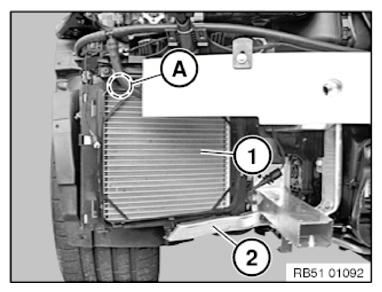

Fig 3: Identifying Auxiliary Radiator Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1 and 2).

Fig 4: Identifying Bumper Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip hose pipe (2) for headlight cleaning system at marked points.

Release screws (1) on V-support (3).

Tightening torque 51 11 7AZ .

Feed out V-support (3).

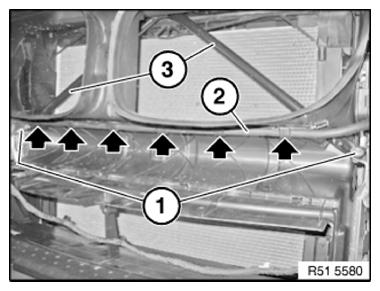

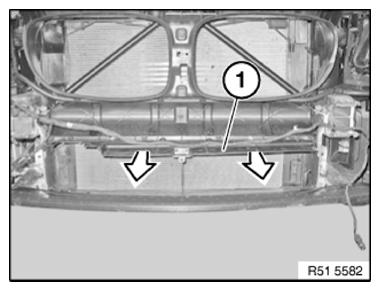

Fig 5: Locating Cross-Struts, Hose Pipe & Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Right side only:

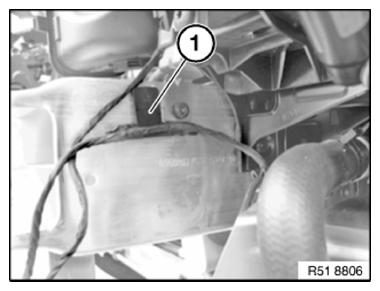

Unclip wiring harness mounting (1).

Fig 6: Unclipping Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

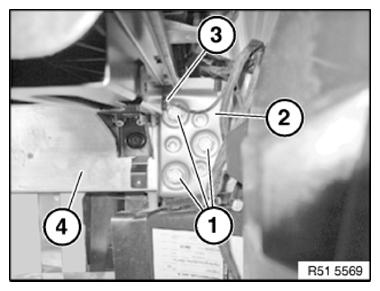

NOTE: For height adjustment, mark position of deformation element (4).

Unfasten plug connection (3) and disconnect.

Release bolts (1) on engine support (2).

Tightening torque 51 11 3AZ .

Installation note:

Height adjustment, refer to 41 00... BODY GAP DIMENSIONS .

Fig 7: Identifying Engine Support Bolts And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on cross-member (2).

Tightening torque 51 11 2AZ .

Fig 8: Identifying Cross-Member Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and (2) and disconnect.

If necessary, unlock and disconnect additional plug connection for Side View camera.

Fig 9: Identifying Bumper Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

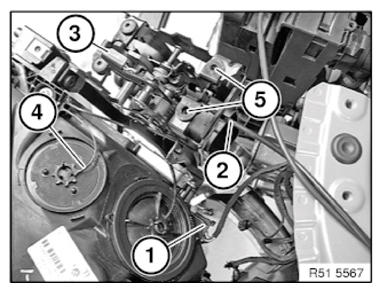

Unlock plug connection (1) on headlights (4) and disconnect.

Disengage Bowden cable (2) from engine compartment lid catch (3).

Release screws (5).

Tightening torque 51 23 2AZ .

Installation note:

Bowden cable (2) must be correctly engaged in engine compartment lid mounts.

Fig 10: Identifying Bumper Plug Connection, Headlights, Bowden Cable And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

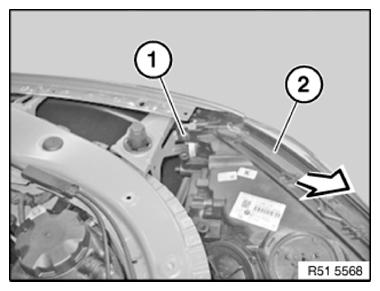

Release screw (1).

Feed out deformation element complete with headlight (2) and lock support in direction of arrow.

Fig 11: Removing Headlights

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove deformation element (2) from lock support (3).

Fig 12: Identifying Lock Support, Element And Screws
