51 47 140 Removing and installing/replacing luggage separating wall
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
Remove LUGGAGE COMPARTMENT FLOOR TRIM PANEL .
Remove COVER ON REAR END PLATE .
Remove LUGGAGE COMPARTMENT WHEEL ARE TRIM ON LEFT .
Remove LUGGAGE COMPARTMENT WHEEL ARCH TRIM ON RIGHT .

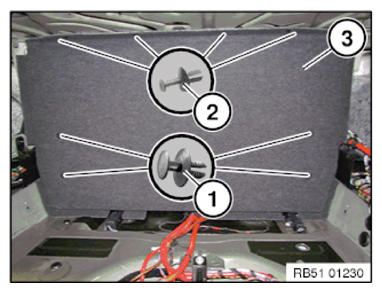

Release expanding rivets (1) and expanding rivets (2) and remove bulkhead panel.
