00 11... Draining/topping up transmission oil in manual transmission

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Transmission must be at operating temperature.
Transmission oil:

refer to OPERATING FLUIDS .

Filling capacities:

Refer to TECHNICAL DATA .

Draining transmission oil:

Release oil drain plug (1) and oil filler plug (2).
Clean oil drain plug (1) and screw in.

Tightening torque 23 00 2AZ .

Adding transmission oil:

Undo oil filler plug (2).
Pour in gear oil until overflowing.
Screw in oil filler plug (2).

Tightening torque: 23 00 2AZ .

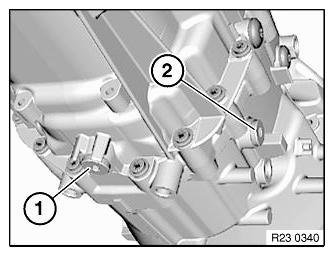

Fig 1: Identifying Oil Drain Plug And Oil Filler Plug

Courtesy of BMW OF NORTH AMERICA, INC.
