33 00... Rear axle: wheel/chassis alignment check must be carried out after the following work
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

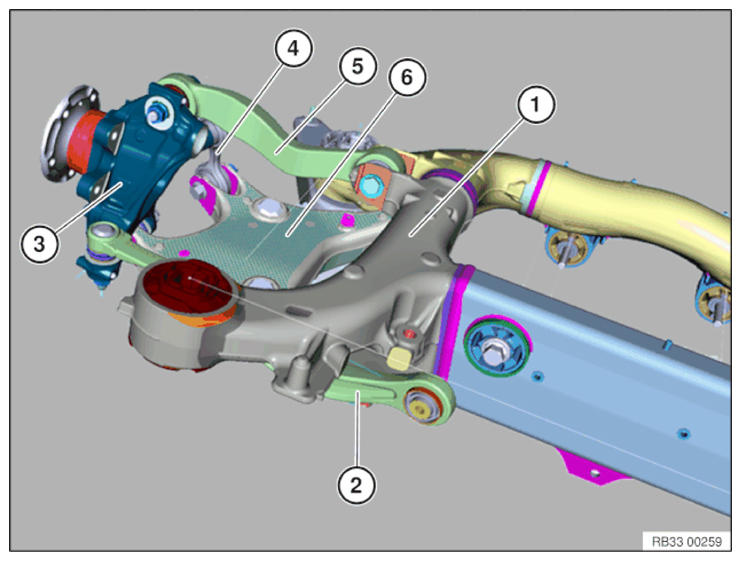

A WHEEL/CHASSIS ALIGNMENT CHECK must be carried out after the following work:
- Release the following screw connection:
- Swinging arm, front/rear, to rear axle support
- Swinging arm to integral link/wheel carrier
- Control arm to rear axle support
- Wishbone to rear axle support/wheel carrier
- Replacement of following parts:
- Rear axle support
- Toe arm
- Wheel carrier
- Integral link
- Wishbone
- Swinging arm
