33 10 155 Removing and installing/replacing right rear axle differential servomotor (M5)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove EXHAUST SYSTEM .

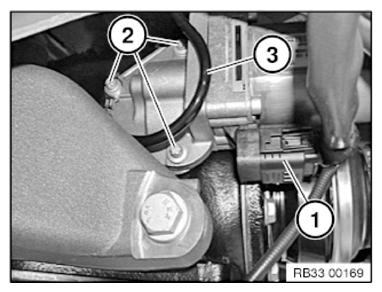

Unfasten plug connection (1) and disconnect.

Release screws (2) and place ground strap (3) to one side.

Tightening torque 33 11 7AZ .

Take out servomotor on the right past the output shaft.

Fig 1: Identifying Plug Connection, Screws And Ground Strap

G09926947

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

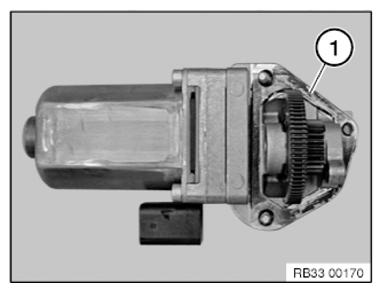

Clean sealing surface (1) and apply Loctite 5970 sealing compound.

Fig 2: Identifying Sealing Surface

G09926948

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

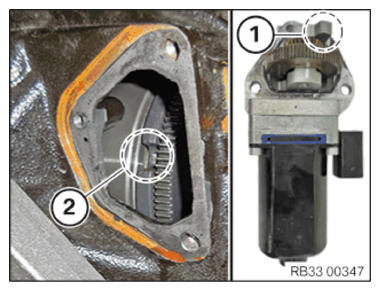

During installation, it is absolutely essential to make sure that guide (1) on servomotor is seated in groove (2) in rear axle differential.

Fig 3: Identifying Guide On Servomotor And Groove In Rear Axle

G09926949

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Replacement only: Perform START-UP .
