33 17 005 Replacing rubber mount for rear differential mounting at rear

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

33 0 031
33 0 032
33 0 033
33 0 034 . See 0496510 330034 WASHER MECHANICAL TOOL or 0496510 330034 WASHER AM
33 0 035
33 0 036
33 5 105

IMPORTANT: To ensure that the rear axle rubber mounts are securely seated in the rear axle support, observe a waiting period of 2 hours after pressing in the rubber mounts or before driving the vehicle for the first time.
Failure to comply with this requirement may cause the rubber mounts to drift in the rear axle support!

Necessary preliminary tasks:

Pull out rubber mount with special tools 33 0 031 , 33 0 032 , 33 0 035 and 33 0 036 .

NOTE: Make sure special tool 33 0 031 contacts rear axle support correctly.

Use ratchet ring spanner 33 5 105.

Fig 1: Pulling Out Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.

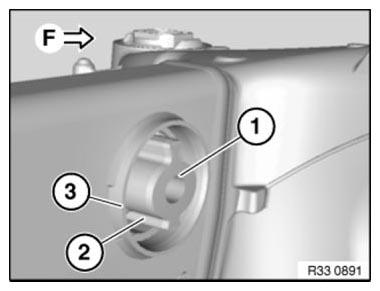

IMPORTANT: Coat bearing bushing in rear axle carrier and new rubber mount (3) with Circo Light.

Align rubber mount (3) by means of notch (1).

Protrusion (2) points in direction of travel.

Fig 2: Identifying Rubber Mount, Notch And Protrusion

Courtesy of BMW OF NORTH AMERICA, INC.

Pull on rubber mount (1) with special tools 33 0 033 , 33 0 034 . See 0496510 330034 WASHER MECHANICAL TOOL or 0496510 330034 WASHER AM , 33 0 035 and 33 0 036 as far as it will go.

NOTE: Make sure special tools 33 0 033 and 33 0 034 . See 0496510 330034 WASHER MECHANICAL TOOL or 0496510 330034 WASHER AM contact rear axle support correctly.

Use ratchet ring spanner 33 5 105.

Fig 3: Identifying Special Tools (33 0 033)

Courtesy of BMW OF NORTH AMERICA, INC.
