51 71 382 Removing and installing/replacing rear trailing links

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Observe SAFETY INFORMATION for raising the vehicle
Driving without the trailing link is not permitted!

Release screws (1).

Remove cover (2).

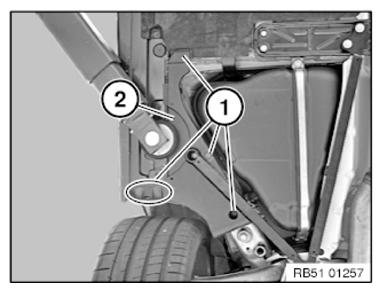

Fig 1: Identifying Screws And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 61 17AZ .

Unfasten screws (2).

Tightening torque 51 61 16AZ .

Remove trailing link (3).

NOTE: Carry out work on the left side in the same way as for the right side illustrated here.

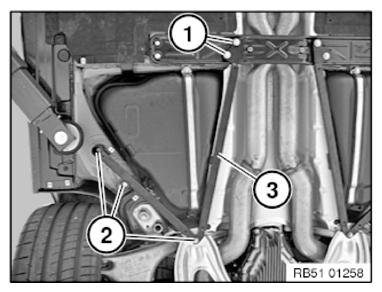

Fig 2: Identifying Trailing Link And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
