33 32 131 Removing and installing/replacing a steering stub/wheel carrier (M5)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

IMPORTANT: Secure wheel carrier against falling out.
Fig 1: Identifying Wheel Carrier
G04794631Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on respective shock absorber (2).

Tightening torque 33 52 3AZ .

Release shock absorber (2) from wheel carrier (3).

Fig 2: Identifying Shock Absorber, Wheel Carrier And Bolt
G09926917Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1) and remove screw.

Tightening torque 33 32 4AZ .

Release screw (2) and remove integral link (3).

Tightening torque 33 32 5AZ .

Installation note:

Replace screw and nut.

Tighten screw connections in NORMAL POSITION .

Fig 3: Identifying Integral Link, Screw And Nut
G06889861Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Tightening torque 33 32 7AZ .

Remove toe link (2) from wheel carrier.

Installation note:

Replace nut (1).

Keep toe link to wheel carrier connection clean and free from oil and grease.

Fig 4: Identifying Toe Link And Nut
G09927084Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Tightening torque 33 32 9AZ .

Remove wishbone (3) from wheel carrier.

Installation note:

Replace nut (1).

Keep wishbone to wheel carrier connection clean and free from oil and grease.

Fig 5: Identifying Wishbone And Nut
G09927085Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 34 51 3AZ .

Withdraw wheel speed sensor (2) from bore hole.

Installation note:

Grease bore hole for pulse sensor with Staburags NBU 12/K lubricating grease.

IMPORTANT: Check sensor head and line prior to installation for damage, replacing if necessary.
Fig 6: Identifying Wheel Speed Sensor And Screw
G06890087Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (4) and remove screw.

Tightening torque 33 32 3AZ .

Remove wheel carrier.

Installation note:

Tighten down screw connection in NORMAL POSITION .

Replace self-locking nut.

Replacement:

Modify BRAKE ANCHOR PLATE/BRAKE GUARD PLATE .

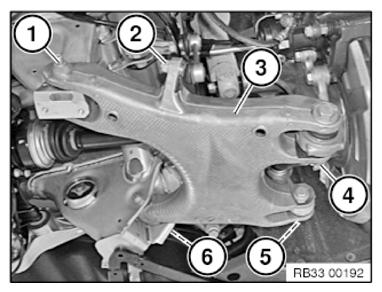

Fig 7: Identifying Swinging Arm, Eccentric Washer And Nut
G09927087Courtesy of BMW OF NORTH AMERICA, INC.

After installation:
