33 32 125 Replacing a ball joint in left or right steering stub/wheel carrier

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove SWINGING ARM .

Lift out circlip (1).

Installation note:

Install retaining ring (1).

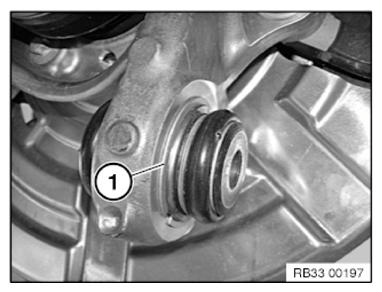

Fig 1: Identifying Retaining Ring

G09927111

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out ball joint with special tool 33 3 011 , 33 4 192 , 33 4 191 , 33 4 193 .

Slotted side of special tool 33 4 191 must point to wheel carrier.

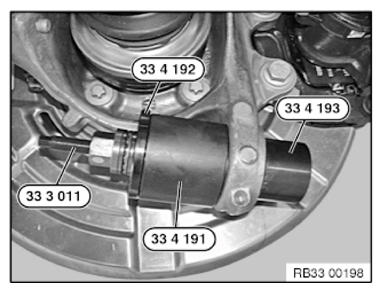

Fig 2: Pulling Out Ball Joint

G09927112

Courtesy of BMW OF NORTH AMERICA, INC.

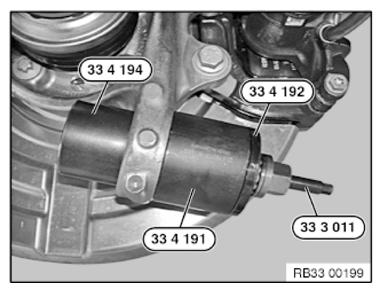

Install new ball joint with special tools 33 3 011 , 33 4 192 , 33 4 191 , 33 4 194 up to limit position.

Install new circlip.

Fig 3: Installing Circlip

G09927113

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Carry out wheel alignment procedure . See 32 00 150 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or 32 00 155 KDS WHEEL ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD .
