33 32 071 Replacing one upper wishbone (M5)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the wishbone is detached from the rear axle support/wheel carrier, it will be necessary to carry out the wheel alignment procedure . See 32 00 150 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or 32 00 155 KDS WHEEL ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD after assembly.

Necessary preliminary tasks:

Remove REAR WHEEL .

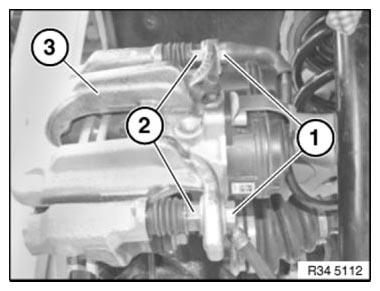

Unscrew guide bolts (1).

Tightening torque 34 21 5AZ .

If necessary, grip at hexagon head (2).

Remove brake calliper (3) and tie back.

Installation note:

Replace guide bolts.

Fig 1: Identifying Hexagon Head, Brake Caliper And Guide Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

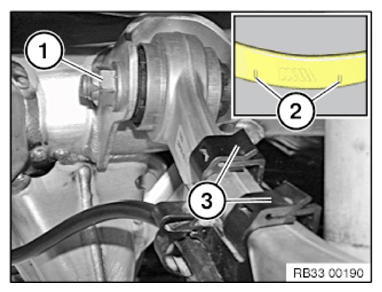

Remove holders (3) from wishbone.

Release nut (1) and remove screw.

Tightening torque 33 32 8AZ .

Installation note:

Replace nut (1) and screw.

The holder (3) must be positioned between the lugs (2).

The left and right holders are different.

Replace defective bracket.

Tighten down screw connection in NORMAL POSITION .

Fig 2: Identifying Holder, Lugs And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

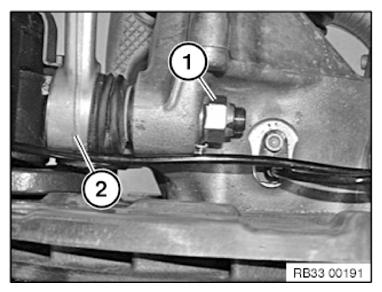

Slacken nut (1).

Tightening torque 33 32 9AZ .

Remove wishbone (3) from wheel carrier.

Installation note:

Replace nut (1).

Keep wishbone to wheel carrier connection clean and free from oil and grease.

Fig 3: Identifying Wishbone And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Perform wheel alignment . See 32 00 150 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or 32 00 155 KDS WHEEL ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD .
