33 32 064 Removing and installing/replacing left or right swinging arm (M5)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

31 5 220

NOTE: If the swinging arm is detached from the integral link/wheel carrier or rear axle support, it is necessary after reinstallation to carry out a chassis/wheel alignment check.

Necessary preliminary tasks:

Remove REAR WHEEL .
Remove REINFORCEMENT PLATE .

Left side only:

Slacken nut (1).

Tightening torque 37 14 5AZ .

Remove jointed rod (2) from swinging arm.

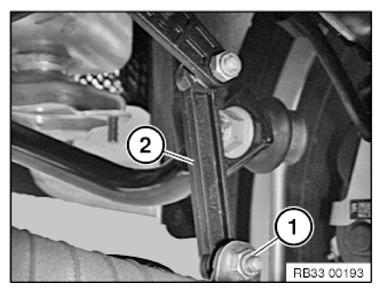

Fig 1: Identifying Slacken Nut And Jointed Rod

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on respective shock absorber (2).

Tightening torque 33 52 3AZ .

Release shock absorber (2) from wheel carrier (3).

Fig 2: Identifying Shock Absorber, Wheel Carrier And Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Secure special tool 31 5 220 with wheel studs on drive flange.

Press wheel carrier a maximum of approx. 10 cm towards top.

Fig 3: Identifying Special Tool (31 5 220)

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1) and remove eccentric washer.

Tightening torque 33 32 8AZ .

Pull out screw.

Release nut (2) and remove anti-roll bar link from swinging arm (3).

Tightening torque 33 55 2AZ .

Release nut (4) and remove screw.

Tightening torque 33 32 3AZ .

Release nut (5) and remove screw.

Tightening torque 33 32 4AZ .

Release nut (6) and remove screw.

Tightening torque 33 32 8AZ .

Fig 4: Identifying Swinging Arm, Eccentric Washer And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Tighten down screw connection in NORMAL POSITION .

Replace self-locking nut.

IMPORTANT: Loosen the screw connection swinging arm on rear axle support only with ring installation tool (1) and extension lever (2).
Release torque > 400 Nm
Ring fitting tool: Order No. 81 64 2 185 817
Extension lever: Order No. 81 64 2 185 816

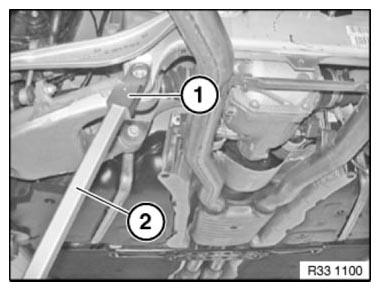

Fig 5: Identifying Ring Installation Tool And Extension Lever

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Check output shaft for correct seating in rear axle final drive.
Carry out wheel alignment procedure . See 32 00 150 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or 32 00 155 KDS WHEEL ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD .
