31 21 090 Replacing left/right swivel bearing (Hybrid)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove SWIVEL BEARING .
REMOVE pulse generator from swivel bearing

Remove WHEEL BEARING (1).
Check wheel bearing and renew if necessary.
Modify BRAKE GUARD PLATE (2).
Modify line clip (3).

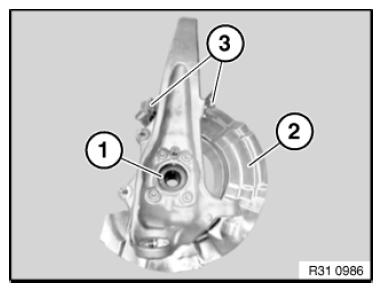

Fig 1: Identifying Wheel Bearing, Brake Guard Plate And Line Clip
Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Carry out wheel alignment procedure . See 32 00 150 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or 32 00 155 KDS WHEEL ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD .
