31 12 134 Replacing rubber mount in left or right trailing link

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Rubber mount may only be renewed once!

Necessary preliminary tasks:

Check ball joints of trailing links while installed, replace trailing link . See 31 12 050 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT TRAILING LINK or 31 12 050 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT TRAILING LINK (ALL-WHEEL DRIVE VEHICLE) if necessary.
Remove trailing link . See 31 12 050 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT TRAILING LINK or 31 12 050 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT TRAILING LINK (ALL-WHEEL DRIVE VEHICLE) .

IMPORTANT: If the trailing link already features an identification mark with a center punch, it is necessary to replace the trailing link.

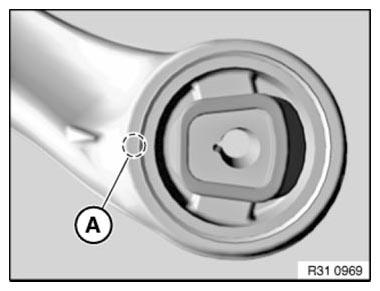

Mark trailing link with a punch mark in area (A).

Fig 1: Identifying Trailing Link With Punch Mark

G06889577

Courtesy of BMW OF NORTH AMERICA, INC.

Using a press and special tools 33 3 322 and 31 3 032 , press rubber mount out of tension strut.

NOTE: Special tool 33 3 322 must be exactly flush with rubber mount bush.

Fig 2: Pressing Rubber Mount Out Of Tension Strut

G04794327

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Keep rubber mount and bush in tension strut clean and free from grease.

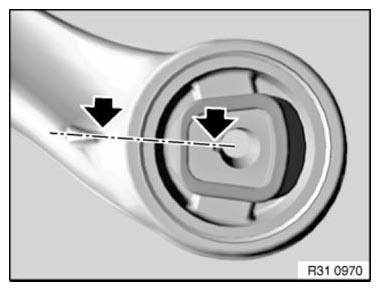

Align rubber mount using notch to marking on trailing link and press in.

Fig 3: Aligning Rubber Mount Using Notch To Marking On Trailing Link

G06889579

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Protrusion (A) equally large.

Fig 4: Identifying Trailing Link Protrusion
Courtesy of BMW OF NORTH AMERICA, INC.
