31 51 020 Replacing shaft seal for right output shaft

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

31 5 130

Necessary preliminary tasks:

Remove RIGHT OUTPUT SHAFT

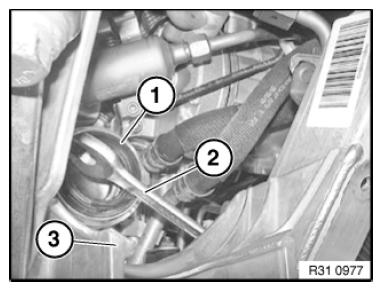

Lever radial shaft seal (1) with an open-end spanner (2) out of bearing support (3).

Fig 1: Removing Radial Shaft Seal From Bearing Support Using Open-End Spanner

Courtesy of BMW OF NORTH AMERICA, INC.

Install radial shaft seal:

NOTE: The installation protective ring (1) serves to protect the sealing lips on shaft seal (2) when the output shaft is being installed.

Fig 2: Identifying Protective Ring And Radial Shaft Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

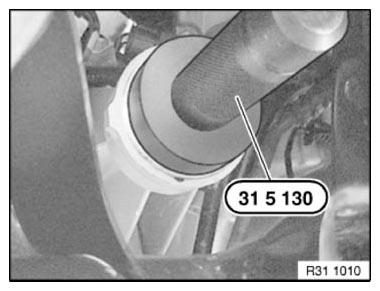

Drive in shaft seal with special tool 31 5 130 as far as it will go.

Fig 3: Installing Shaft Seal With Special Tool (31 5 130)

Courtesy of BMW OF NORTH AMERICA, INC.
