00..... Raising vehicle with trolley jack

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Observe the following trolley-jack-related instructions:

Only trolley jacks sold or approved by BMW, with a rubber plate on their mounting, may be used!
Trolley jacks must be regularly serviced and always checked for functional reliability before they are used!
Check the rubber plate on the trolley jack prior to each use, replacing if necessary.

Fig 1: Identifying Trolley Jacks
Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Vehicle may only be raised with stiffening plate fitted on the front axle!
Raising directly on the front axle support without stiffening plate is not permissible!

WARNING: The vehicle may be raised with a trolley jack only at the following mounting point!

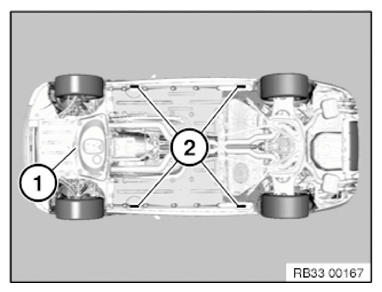

Car jacking point
Side car jacking points

Fig 2: Identifying Side Car Jacking Points
Courtesy of BMW OF NORTH AMERICA, INC.

Risk of damage!

Jacking point (1) must be present!

Align the rubber plate on the trolley jack to the jacking point (1) in such a way that there is no contact to adjacent components and that they are therefore not damaged.

Fig 3: Identifying Jacking Point

Courtesy of BMW OF NORTH AMERICA, INC.
