31 51 015 Replacing shaft seal for left output shaft

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

31 5 130

Necessary preliminary work:

REMOVE left output shaft.

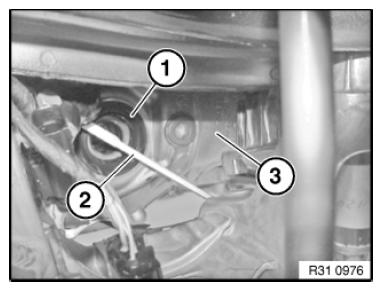

Lever shaft seal (1) out of front axle differential (3) with a fork wrench (2).

Fig 1: Identifying Shaft Seal Out Of Front Axle Differential With Fork Wrench

G08512335

Courtesy of BMW OF NORTH AMERICA, INC.

Install radial shaft seal:

NOTE: The installation protective ring (1) serves to protect the sealing lips of the radial shaft seal (2) when the output shaft is being installed.

Fig 2: Identifying Protective Ring And Radial Shaft Seal

G04794385

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Drive in shaft seal with special tool 31 5 130 up to limit position.

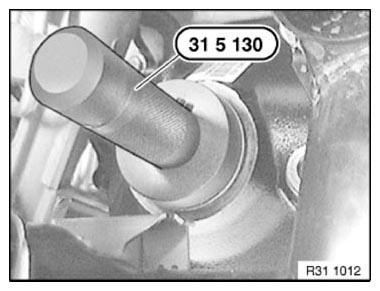

Fig 3: Installing Shaft Seal With Special Tool (31 5 130)

G09849144

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Check FRONT AXLE GEARBOX OIL LEVEL , correct if necessary.
