31 51 010 Replacing radial seal for drive flange of front axle differential

Special tools required:

• 23 0 020
• 31 5 130
• 33 1 150

Necessary preliminary work:

• Remove STIFFENING PLATE
• Remove FRONT PROPELLER SHAFT .
• Vehicles with N63 only: REMOVE FRONT AXLE DIFFERENTIAL .

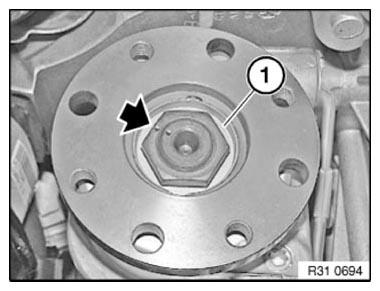

Mark position of nut with respect to shaft with punch marks (arrow).

Lever out lockplate (1) with a suitable tool.

Fig 1: Locating Lockplate With Suitable Tool

Courtesy of BMW OF NORTH AMERICA, INC.

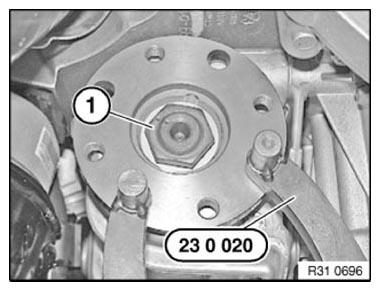

Secure drive flange with special tool 23 0 020 against turning and release nut (1).

Fig 2: Securing Drive Flange With Special Tool (23 0 020)

Courtesy of BMW OF NORTH AMERICA, INC.

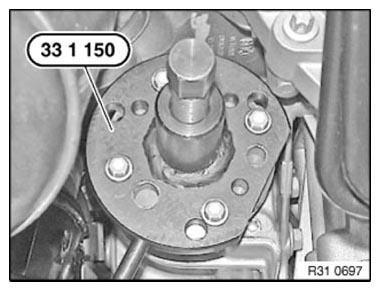

Pull drive flange off drive shaft with special tool 33 1 150 .

Fig 3: Pulling Drive Flange Off Drive Shaft With Special Tool (33 1 150)

Courtesy of BMW OF NORTH AMERICA, INC.

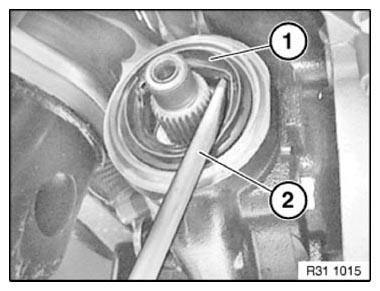

Lever shaft seal (1) out of front axle differential with a suitable screwdriver (2).

Fig 4: Removing Shaft Seal Of Front Axle Differential

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

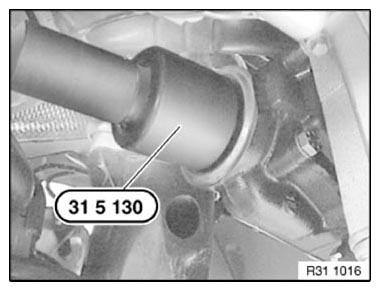

Drive in shaft seal with special tool 31 5 130 up to limit position.

Coat sealing lips of new shaft seal (1) with front axle differential oil.

Fig 5: Installing Shaft Seal With Special Tool (31 5 130)

Courtesy of BMW OF NORTH AMERICA, INC.

Clean drive flange and attach.

Tighten down nut until punch marks on nut and shaft are aligned.

Install new lockplate (1).

Fig 6: Locating Lockplate With Suitable Tool

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

• Check FRONT AXLE GEARBOX OIL LEVEL , correct if necessary.
