31 51 065 Replacing O-ring for bearing block

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove bearing support . See 31 53 040 REMOVING AND INSTALLING/REPLACING RIGHT OUTPUT SHAFT BEARING BLOCK , 31 53 040 REMOVING AND INSTALLING/REPLACING RIGHT OUTPUT SHAFT BEARING BLOCK or 31 53 040 REMOVING AND INSTALLING/REPLACING RIGHT OUTPUT SHAFT BEARING BLOCK .

Lever out O-ring (1) from bearing block (2) with a screwdriver.

Installation note:

Insert O-ring (1) in groove and coat with front axle differential oil.

Replace RADIAL SHAFT SEAL .

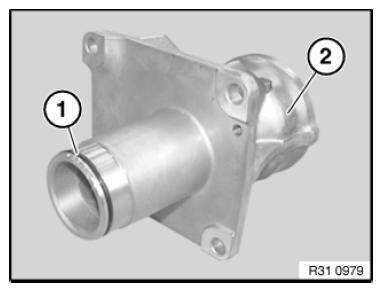

Fig 1: Identifying Bearing Block And O-Ring

Courtesy of BMW OF NORTH AMERICA, INC.
