23 14 505 Replacing transmission oil temperature sensor (GS6-53BZ)
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2016 BMW M5, 2016 BMW 535i, 2015 BMW M5, 2015 BMW 535i, and 2014 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove rear UNDERBODY PROTECTION .
- If necessary, remove left heat shields.
IMPORTANT:
After completion of repair work, check transmission oil level
. See 00 11 229 CHANGING/TOPPING UP/CHECKING GEAR OIL IN MANUAL TRANSMISSION
or 00 11 229 CHANGING/TOPPING UP/CHECKING GEAR OIL IN MANUAL TRANSMISSION
.
Recycling:
Catch and dispose of gear oil with suitable equipment.
Observe country-specific waste disposal regulations.

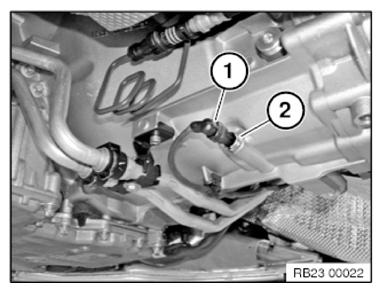

Unlock connector (1) and remove.
Remove oil temperature sensor (2).
Tightening torque 23 14 3AZ .
