13 62 592 Removing and installing/replacing pressure sensor on right charge-air cooler (S63B44 T 0)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out the fault memory of the DME control unit.
Switch off ignition
Remove right-hand INTAKE SILENCER HOUSING

Unlock connector (1) and remove.

Unfasten screws (2).

Tightening torque 13 62 7AZ .

Pull pressure sensor (3) out of right intercooler.

Installation note:

Replace sealing ring on pressure sensor.

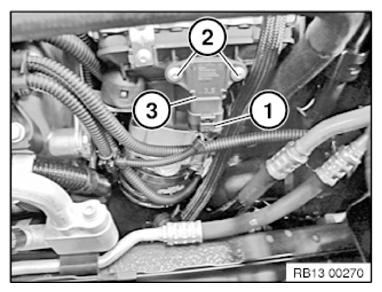

Fig 1: Identifying Pressure Sensor Connector And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Delete fault memory.
