13 62 591 Removing and installing/replacing pressure sensor on left charge air cooler (S63 B44 T 0)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out DME control unit fault memory.
Switch off ignition
Remove left INTAKE FILTER HOUSING

Unlock connector (1) and remove.

Unfasten screws (2).

Tightening torque 13 62 7AZ .

Pull pressure sensor (3) out of left charge air cooler.

Installation note:

Replace sealing ring on pressure sensor.

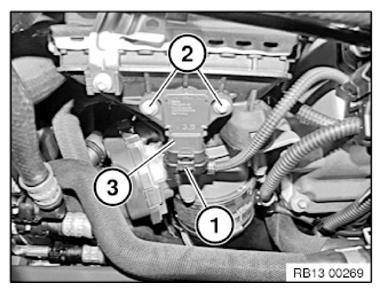

Fig 1: Identifying Pressure Sensor Connector And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Delete fault memory.
