13 62 589 Replace differential pressure sensor (N57 D30 O/T 1 with SCR)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out the fault memory of the DDE control unit.
Switch off ignition.
Remove INTAKE SILENCER HOUSING .

WARNING: Risk of burning!
Only perform this repair work on an engine that has cooled down.

Unlock connector (1) and remove.

Pull off pressure hoses (3). Renew pressure hoses.

Release screw (3).

Remove differential-pressure sensor.

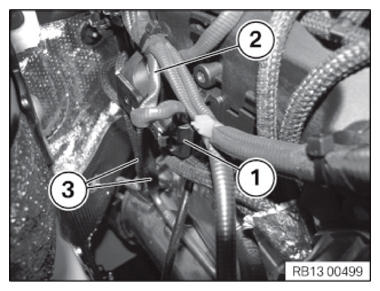

Fig 1: Identifying Differential-Pressure Sensor, Pressure Hose And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check stored error/fault messages.

Clear diagnostic fault entries from fault memory.
