13 62 585 Replacing exhaust backpressure sensor for exhaust turbocharger (N57 D30 O 1)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Risk of burning!
Only perform this repair work on an engine that has cooled down.
Only perform this repair work on an engine that has cooled down.
Necessary preliminary tasks:
- Read out the fault memory of the DDE control unit.
- Switch off ignition.
- Remove INTAKE SILENCER HOUSING .

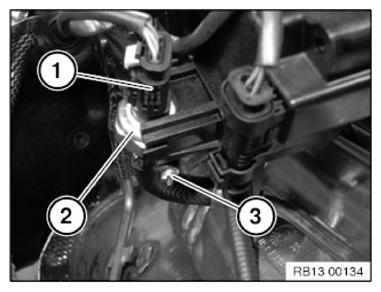

Unlock connector (1) and remove.
Release clamp (3).
Unclip exhaust back pressure sensor (2) and pull off from pressure hose.
Installation note:
Immediately secure pressure hose back to the hose clamp on the exhaust back pressure sensor.
Installation note:
After replacing the exhaust back pressure sensor, carry out an adaptation using the, Exhaust back pressure sensor upstream of exhaust turbocharger diagnosis system.
Check stored error/fault messages.
Delete fault memory.
