13 62 560 Removing and installing/replacing the hot film air mass meter (N57 D30 U/O/T 0/1)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out the fault memory of the DDE control unit.
Switch off ignition.
Remove ACOUSTIC COVER .

Version 1:

Unlock connector (1) and remove.

Unfasten screws (2).

Tightening torque 13 71 1AZ .

Remove the hot film air mass meter (3).

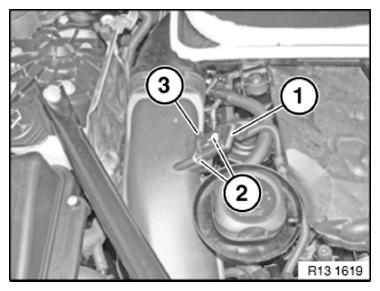

Fig 1: Identifying Hot Film Air Mass Meter, Connector And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2:

Unlock connector (1) and remove.

Unfasten screws (2).

Tightening torque 13 71 1AZ .

Remove the hot film air mass meter (3).

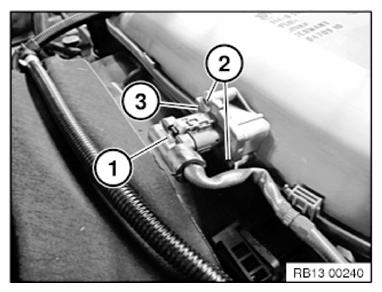

Fig 2: Identifying Hot Film Air Mass Meter Connector And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Reset the adaptation values for the air mass system via the BMW diagnosis system.

NOTE: Check stored fault messages.

Delete fault memory.
